Please post your photos and descriptions of your Carawagon, Dormobile or Camper here.
-
Gromit
- Posts: 69
- Joined: Sat Jan 24, 2015 10:26 am
- Location: Victoria, Australia
Post
by Gromit » Sun Feb 01, 2015 8:12 pm
Dormy wrote:Gromit wrote:
P.S. Do you have whatever it is that fits to the brackets on top of the cab roof, if so any pics ?
Ian,
No I don't, but I have to catch up with the gentleman who has been servicing it for the last 30+ years. He should be able to fill some more of the history and maybe a few details like whether it ever had a sink & table. What fitted between the front dumb irons and what went on the roof etc. etc.
The people I purchased it from said if I can confirm that parts were with it when their Father owned it they will look round the farm buildings to see if they can find them.
Colin
P.S. I did try the hatch both ways round and had to tweak it a bit to fit it as shown. As you say re-fitting the seat was a PITA so this way I can move the seat forward to get to the hatch to fill the fuel tank. The previous owners must have had problems because most of the bolts were missing for the seat runners and the seat wasn't in the runners, as you put your foot on the clutch the seat shot backwards !
1956 Series I 86" hardtop
1960 Series II LWB ute (sold)
1965 Series IIa Dormobile
1970 Series IIa GS
1976 Series III SWB with Isuzu 2.4
1981 Series III FFR
1995 Defender Tanami
-
DrivingDutchman
- Posts: 392
- Joined: Mon Feb 10, 2014 11:44 am
- Location: Raunds, Northants
Post
by DrivingDutchman » Sun Feb 01, 2015 11:14 pm
Those brackets on the front bit of the roof might be for the second skin of the roof. Mine has a roof like that. I can full well imagine the benefits of having a safari roof in Australia.
I'll try to get a pic soon.
Michiel
1969 109 sw dormobile Dora
1996 overland defender sw 110 Nellie
1962 109 sw safari diesel Hannie (sold)
1973 88 series 3 soft top in various bits on the drive...
-
Gromit
- Posts: 69
- Joined: Sat Jan 24, 2015 10:26 am
- Location: Victoria, Australia
Post
by Gromit » Mon Feb 02, 2015 7:41 am
DrivingDutchman wrote:Those brackets on the front bit of the roof might be for the second skin of the roof. Mine has a roof like that. I can full well imagine the benefits of having a safari roof in Australia.
I'll try to get a pic soon.
Michiel
I thought it might be from a tropical roof but I've never looked at how they're mounted. Otherwise a roofrack maybe ?
I'll ask the chap who's been servicing it over the years when I catch up with him.
The two roof windows have been painted white, the side window behind the wardrobe removed and some insulation put inside the rear drivers side corner. Maybe heat buildup when in Central Australia.
Found yesterday that it has a spin-on oil filter, must have been modified at some point over the years. Did have some trouble tracking down the filter although I'm sure there will be others that will fit.
Also noticed a fuel filter the same as used on the 6-cylinder.
Colin
1956 Series I 86" hardtop
1960 Series II LWB ute (sold)
1965 Series IIa Dormobile
1970 Series IIa GS
1976 Series III SWB with Isuzu 2.4
1981 Series III FFR
1995 Defender Tanami
-
DrivingDutchman
- Posts: 392
- Joined: Mon Feb 10, 2014 11:44 am
- Location: Raunds, Northants
Post
by DrivingDutchman » Tue Feb 03, 2015 10:59 pm
Here is a picture of Dora. Hope you can make out the double skinned roof bit. When the weather improves I can try and take a more detailed picture.
image by
michielsiegers, on Flickr
Michiel
1969 109 sw dormobile Dora
1996 overland defender sw 110 Nellie
1962 109 sw safari diesel Hannie (sold)
1973 88 series 3 soft top in various bits on the drive...
-
DrivingDutchman
- Posts: 392
- Joined: Mon Feb 10, 2014 11:44 am
- Location: Raunds, Northants
Post
by DrivingDutchman » Tue Feb 03, 2015 11:07 pm
Btw regarding the access to the under seat area on the driver side...
Mine pivots after releasing a knob at the front of the seat box. 2 actually. Once they are undone, you can then lift the front of the driver seat up, including the sliding rail. The whole seat can be lifted up, and even lifted out in one go. There is no need to slide the seat completely out of the runners. Maybe that has been modified on yours as well at some point?
Cheers,
Michiel
1969 109 sw dormobile Dora
1996 overland defender sw 110 Nellie
1962 109 sw safari diesel Hannie (sold)
1973 88 series 3 soft top in various bits on the drive...
-
AntMan232
- Posts: 130
- Joined: Sat Jun 15, 2013 10:26 pm
- Location: Godalming
Post
by AntMan232 » Wed Feb 04, 2015 11:47 am
Michiel,
Is there any chance you could take a photo of your driver's seat assembly, because I haven't yet worked out how to get underneath the seat on mine, so i'm wondering if i'm missing a bit?
Thanks,
Ant
1965 Series 2A Dormobile
-
Dormy
- Posts: 226
- Joined: Tue Feb 21, 2012 11:45 pm
- Info: Sleeping on the job.....Zzzzzz
- Location: Norfolk
Post
by Dormy » Thu Feb 05, 2015 1:46 am
^^^^ +1 - Please ?
-
Gromit
- Posts: 69
- Joined: Sat Jan 24, 2015 10:26 am
- Location: Victoria, Australia
Post
by Gromit » Thu Feb 05, 2015 7:35 am
My front seat is fixed onto the standard Land Rover adjustable seat runners.
When sliding forward you have to be careful or the seat comes completely off the runners.
Colin
1956 Series I 86" hardtop
1960 Series II LWB ute (sold)
1965 Series IIa Dormobile
1970 Series IIa GS
1976 Series III SWB with Isuzu 2.4
1981 Series III FFR
1995 Defender Tanami
-
jerryd
- Posts: 395
- Joined: Thu Feb 23, 2012 1:44 pm
- Info: "the pom down under"
- Location: Qld Australia
Post
by jerryd » Thu Feb 05, 2015 9:56 am
Belated welcome Colin
Your driver's seat assembly/runners doesn't look standard equipment, the seat runners should have a 90 degree slotted angle at the front which drops into a thumb screw affair which is fixed to the seat box
The rear of the runners sits under a slightly raised bracket , again fixed to the seat box.
The idea is to undo the thumb screws, lift the runners slightly and then the whole seat lifts out to gain access to the gas bottles in the holder under the seat. A bit hard to explain and I can't find a pic, maybe somebody else has one.
I rearranged my seat box and have three storage compartments instead, with lids that are easily lifted for access. There is a thread about it somewhere in the technical section.
-
jerryd
- Posts: 395
- Joined: Thu Feb 23, 2012 1:44 pm
- Info: "the pom down under"
- Location: Qld Australia
Post
by jerryd » Thu Feb 05, 2015 10:13 am

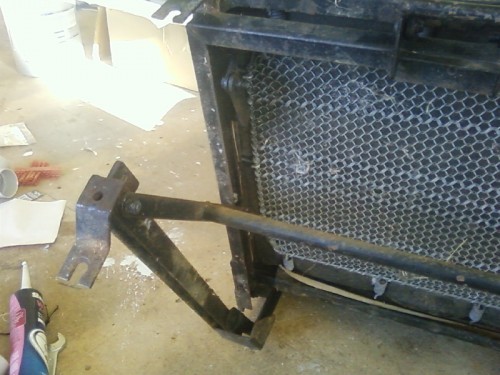

Just found this pic of my spare passenger seat, although not in a runner as per the driver's seat you can get an idea of how the runner should look with the folded section at the front.
-
Attachments
-
- Spare Seat.jpg (54.58 KiB) Viewed 10770 times
